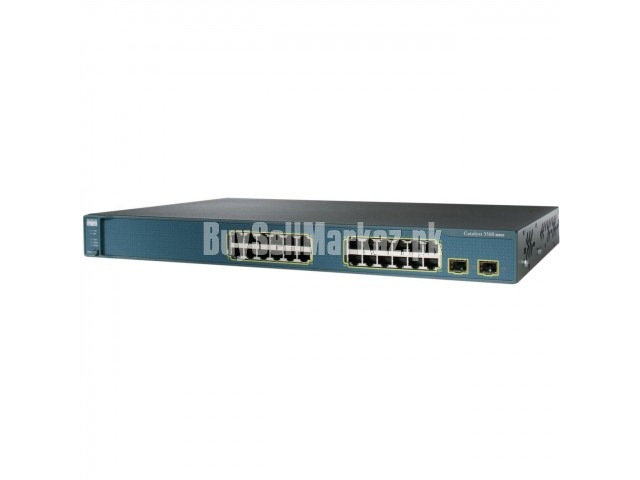

Description

The Cisco Catalyst 3560 v2 Series is the next-generation energy-efficient Layer 3 fast Ethernet switches. This series of switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560 v2 Series consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
Product Features

Redundant power system
The Cisco Catalyst 3560 v2 Series access switches support the generation of Cisco RPS 2300, which increases availability in a converged data, voice, and video network by providing transparent power backup to two of six attached Cisco Catalyst 3560 v2 Series switches at the same time. The Cisco Catalyst 3560 v2 Series switches are capable of reverting back to their internal power supply without any service interruption.
Ease of use and deployment
The Cisco Catalyst 3560 v2 series offers several ease of use features, which enable fast and easy configuration of advanced Cisco Catalyst capabilities.
Enhanced security
With the wide range of security features, such as ACLs, authentication, port-level security, and identity based network services (IBNS) with 802.1x and extensions, that the Cisco Catalyst 3560 v2 Series offers, businesses can protect important information, keep unauthorized people off the network, guard privacy, and maintain uninterrupted operation.
switch.

Product Details
Device Type Switch - 24 ports - L3 - Managed
Enclosure Type Rack-mountable 1U
Interfaces Fast Ethernet
Ports 24 x 10/100 + 2 x SFP
Performance Switching capacity : 32 Gbps
Capacity Switched virtual interfaces (SVIs) : up to 1000
Virtual interfaces (VLANs) : 1000
MAC Address Table Size 12K entries
Jumbo Frame Support 9016
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 44.3 cm x 29.5 cm x 4.4 cm
Weight 3.7 kg
Manufacturer Warranty Limited lifetime warranty
Show Detailed Specification Show Detailed Specification
General
Device Type Switch - 24 ports - L3 - Managed
Enclosure Type Rack-mountable - 1U
Subtype Fast Ethernet
Ports 24 x 10/100 + 2 x SFP
Performance Switching capacity : 32 Gbps
Capacity Switched virtual interfaces (SVIs) : up to 1000
Virtual interfaces (VLANs) : 1000
MAC Address Table Size 12K entries
Jumbo Frame Support 9016
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm SSL
Authentication Method Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flash Memory 32 MB Flash
Status Indicators Link activity, port duplex mode, bandwidth utilization %, power, link OK, system
Expansion / Connectivity
Interfaces 24 x 100Base-TX - RJ-45
1 x console - RJ-45 - management
2 x Ethernet 1000 - SFP (mini-GBIC)
Power
